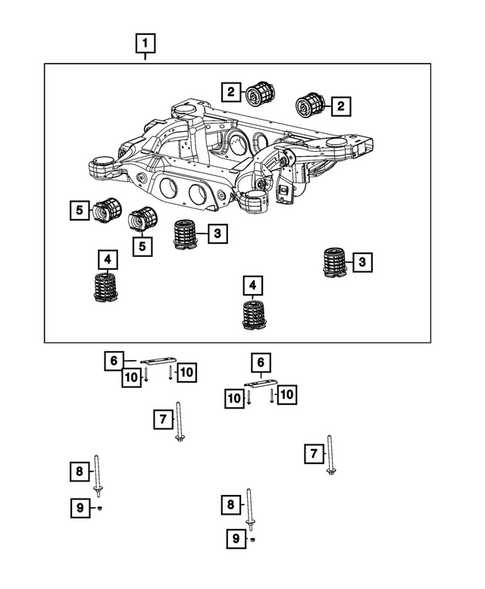

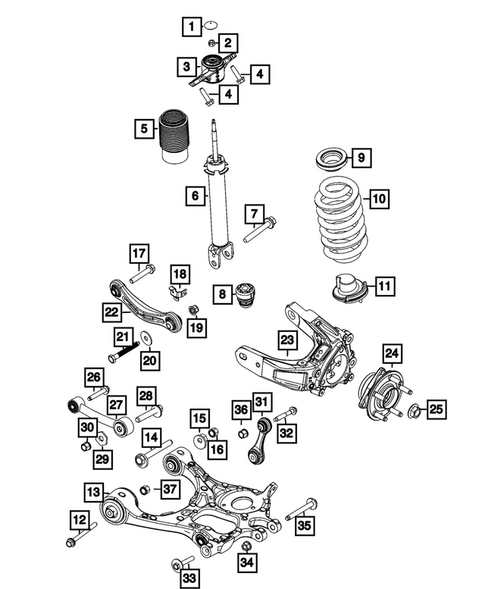

Rear Suspension and Cradle for 2027 Dodge Charger
No.
Part # / Description / Price
Price
2
Hex Locking Nut
Mopar
Mopar Description: M10x1.25. Control Arm To Pillar. Rear Shock Rod to Shock Mount.
$10.20
$10.20
4
Hex Washer Head Bolt Mopar
Mopar Description: Mid Shield To Underbody. Engine Mount Bracket To Pinion Nose Bracket. M12x1.75x50.50.
$2.40
$2.40
6
Suspension Shock Absorber, Left Rear Mopar
Mopar Notes: Engines: 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: Rear.
6
Suspension Shock Absorber, Right Rear Mopar
Mopar Notes: Engines: 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: SUSPENSION
$850.00
$850.00
7
$13.70
12
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Description: M12X1.75X145.00. [Mega Cab]. Engine Mount Bracket To Engine Mount. Insulator to Frame. Mount To Frame.
$16.35
$16.35
13
Lower Control Arm, Right Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2250 RR ELEC DRIVE MOTOR. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: LOWER CONTROL
$614.00
$614.00
17
Hex Flange Head Bolt Mopar
Mopar Description: M14x1.5x80.0. Track Bar to Frame. Track Bar to Axle. M14x1.50x85.00. Knucle to Hub and Bearing. Bearing to knuckle bolt-short. M14x1.50x55.00. Knuckle to Hub and Bearing. LCA to Rear Crossmember. Frt uca to frame.
$7.40
$7.40
18
Wiring Bracket Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
$5.75
$5.75
19
Hex Lock Nut And Washer Mopar
Mopar Description: M14x1.50. Use This With Link Kit 68399868AE. Knuckle Attachment. Drag Link To Knuckle. Tie rod end to knuckle. Ball Joint. Tie Rod Attach.
$9.00
$9.00
22
Suspension Link, Right Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: Rear.
22
Suspension Link, Left Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: Rear.
23
Rear Knuckle, Right Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: REAR
23
Rear Knuckle, Left Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: REAR
23
Rear Knuckle, Right Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: REAR
23
Rear Knuckle, Left Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: REAR
26
Hex Head Bolt And Washer Mopar
Mopar Description: M12x1.50x84.00. Damper To Axle. Steering Gear to Cradle. Hv battery frt to vehicle. Steering Gear to Crossmember.
$7.75
$7.75
27
Toe Link Assembly Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2250 RR ELEC DRIVE MOTOR. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: TOE
31
Suspension Link Mopar
Mopar Notes: Engines: 3.0L TWIN TURBO SIXPACK HO ESS. 3.0L TWIN TURBO SIXPACK SO ESS. 400V G2500 FR/RR ELEC DRIVE MOTORS.
Description: Rear.
$126.00
$126.00
32
Hex Flange Head Bolt Mopar
Mopar Description: M12x1.75x85.00. Front Differential Bushing to Cradle. UCA to Body. Rear Lower Control Arm to Frame. Control Arm Crossmember Attaching.
33
$14.35
34
Hex Flange Head Nut Mopar
Mopar Description: Trailer Hitch Bracket To Frame. Size M14X1.50. Camber Link to Rear Cradle.
$7.20
$7.20
